Name: CP Plus 10 Ports Switch with 8 Port POE & 2 Uplink Ports CP-DNW-HPU8H2-96-V2
Brand: CP Plus
SKU: ASK-CP-044
Price: 1890 INR
Availability: InStock
Rating: 4.5 (1 reviews)

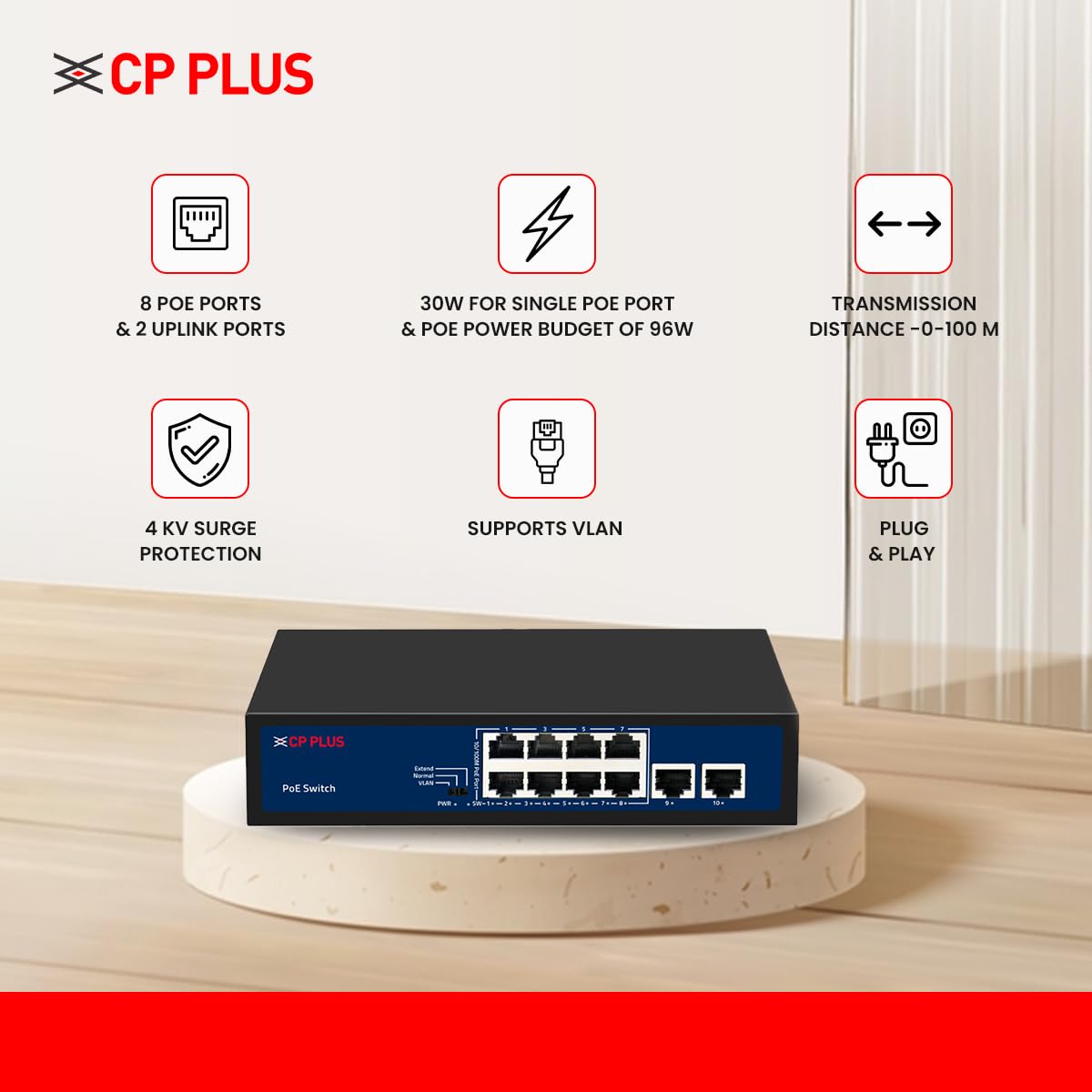

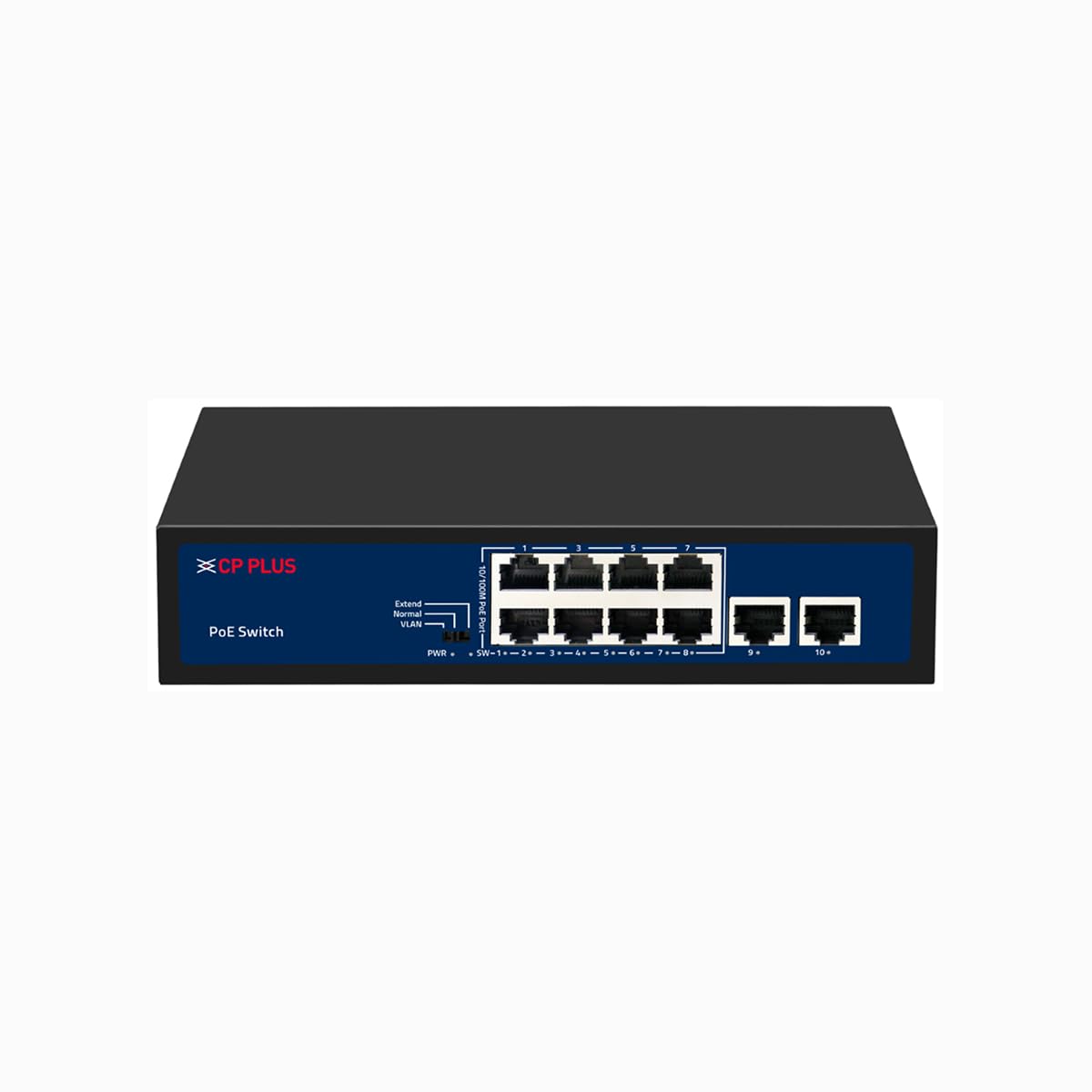

CP Plus 10 Ports Switch with 8 Port POE & 2 Uplink Ports CP-DNW-HPU8H2-96-V2

₹ 1890 ~~₹4200~~55%

Inclusive of all taxes

Sku:
ASK-CP-044

8, 10/100Mbps; RJ45 ports, Supports Max. 30W Output of Single PoE Port
Support IEEE802.3i/802.3u/802.3x
2, 100Mbps, Transmission Distance: 0-100m
Easy and safe installation

Add to Wishlist

Networking, POE Switches, CP PLUS

7 days return

7 days exchange

EMI Available

Check Delivery Availability:

Easy 7 days return available

7 days exchange available

Cash on delivery available.

Review This Product

Share your thoughts with other customers

Write your review

Total reviews: (0)

View All

Features :

Power over Ethernet (PoE) ports: The switch has the ability to provide power to devices such as wireless access points or IP cameras via the Ethernet cable, which eliminates the need for separate power sources.
Uplink options: The switch has multiple options for connecting to other devices or networks, including fast Ethernet, gigabit Ethernet, and SFP (Small Form-factor Pluggable) modules, which provide flexibility in network design.
Store-and-forward transfer method: The switch ensures that data is properly checked before it is forwarded to its destination, which reduces the chances of errors or delays.
IEEE 802.3af/at/bt support: The switch can provide power up to 30/60 watts per port, making it suitable for high-power devices such as video conferencing equipment or pan-tilt-zoom cameras.
Enhanced Power Budget: The switch can deliver a higher total power output across all ports, allowing for greater flexibility in powering devices and reducing the need for additional power sources.

Technical Details :

Network Port	8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Uplink Ports	2, 10/100Mbps; Transmission Distance: Defaulf: 0-100m
Switch Capacity	2Gbps (non-blocking)
Forwarding Rates	0.1488 Mbps/port
PoE Standard	IEEE802.3/802.3u/802.3x
PoE Power Supply	1/2(+),3/6(-)
Transmission Distance	0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List	2k
Lightning Protection	Support
PoE Power Budget	96W
ESD Protection	Air discharge: 8KV Contact discharge: 6KV
Power Consumption	<5W
LED light	Light on: Powering Light off: No Power
Power Source	Built-in Power Supply, Input: 100-240V AC, 50/60Hz
Power Light	Green light off: Normal/Default mode Green light on: VLAN mode Green ligh flash: Extend mode
Working Temp	-20°C ~50°C
Humidity	10% - 95%, non-condensing
Storage Temperature	-45°C ~85°C
Dimension	200mm x 118mm x 44mm
